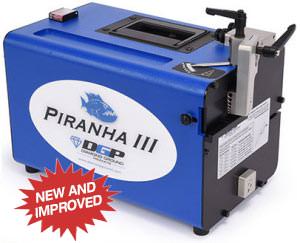

Description Piranha III A Tungsten Grinder. This grinder is designed for maximum commercial use and includes a universal collet which will grind from .040.-3/16. The construction of the PIII A unit is aluminium and very user friendly. The Piranha III unit is also fully enclosed with a 100% containment of excess tungsten electrode dust. (20″ x 16″ x 16″ – 38 lbs / 508mm x 406.5mm x 406.5mm – 17.2 kg) Sliding dust shield for 100% dust containment Integrated receptacle area for ease of handling electrodes Recessed handle for better form & function On/off switch with LED light for improved display of unit operation Lightened chassis for reduced weight Signature blue powdercoat Easy set up, optimal consistency and near-perfect repeatability Compact, durable and solid design with no vibration Longitudinal 20 RA grinding for maximum arc starting, arc stability, electrode life and weld penetration Universal collet arm for 6 electrode sizes – 040” (1.0mm), 1/16” (1.6mm), 3/32” (2.4mm), 1/8” (3.2mm), 5/32” (4.0mm) & 3/16” (4.8mm) – with no equipment changes Included angle scale for angles from 10° – 60° Precision tip flat gauge & depth adjustment stop ensures exact Tungsten points every time – enabling consistent, repeatable arc performance and welding output Dust Shield & Containment Baffle to keep 100% of dust inside the grinder housing, for safety and easy disposal Tip flat block for square end grinding and removing bad tips Electrode notching station for simple cut-off Detailed Manual with valuable engineering data and welding recommendations Port ready for Vacuum upgrade Integrated receptacle for electrode storage/access Recessed carry handle for better form & function
