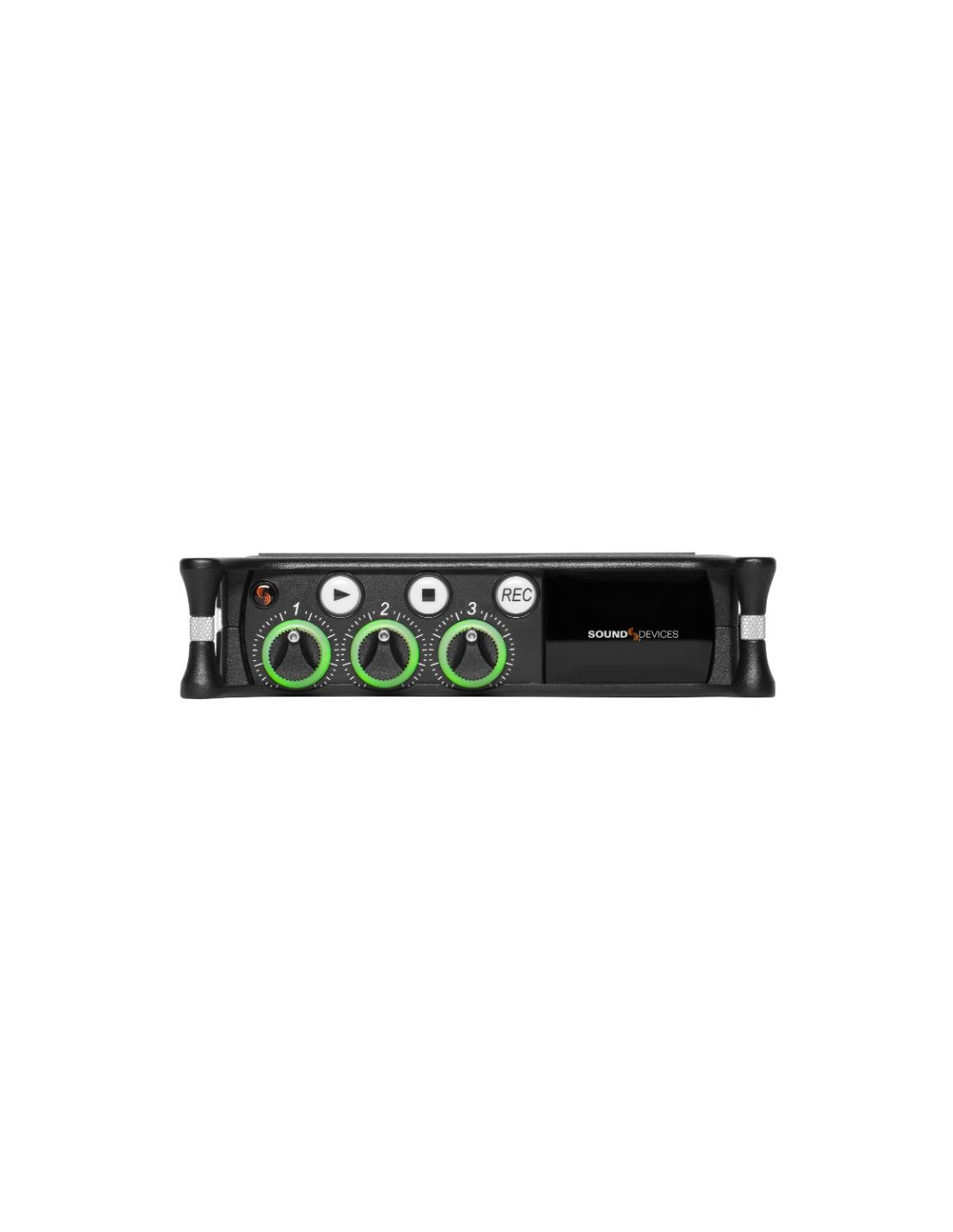

Enregistreur audio portable avec interface audio USB5 pistes : mixage stéréo 3 pistes isoléesRésolution : 32 Bit -Flottant / 192 kHzPlage dynamique : 142 dB (A pondéré, gain = 10 dB, fader = 0 dB)Générateur de timecode intégré Audio Inputs Frequency Response 10 Hz to 80 kHz /- 0.5 dB re 1 kHz @ 192 kHz sample rate THD Noise 0.005% max (@1 kHz, 22-22 kHz BW, gain= 20 dB, -10 dBu in) ADC 32 bit precision; 142 dB dynamic range min (A weighted, gain = 10 dB, fader = 0 dB) Equivalent Input Noise -130 dBV (-128 dBu) max (A-weighting, gain = 76 dB, 150 ohm source impedance) Inputs Mic: XLR active-balanced; 4k input Line: XLR active-balanced; 4k input Aux/Mic in: 3.5 mm TRS, 2-channel unbalanced; 100k input USB Audio: 2 channels 5 Total analog inputs: 3 mic-line inputs, 2 on Aux In All inputs fully RF-filtered and overload protected. Gain Mic input: 6 dB to 76 dB Line input: -20 dB to 30 dB Fader: -inf to 20 dB Headphone: -inf to 20 dB Total, Mic-to-recording (max): 96 dB Aux In (Mic): Gain = 10 dB to 40 dB Aux In (Line): Gain = -10 dB to 20 dB Total Aux Gain including Fader (Mic-to-recording): 60 dB Maximum Input Level Mic XLR: 14 dBu (limiters on or off) Line XLR/¼-inch: 28 dBu (limiters on or off) Aux In (Mic): -10 dBu Aux In (Line): 10 dBu Low Cut Filters 40 Hz to 160 Hz (adjustable), 18 dB/oct. First stage analog, subsequent stages digital. Microphone Powering Mic XLRs: 48 V via 6.8k resistors, 10 mA each Mic 3.5 mm: 3 V @ 3k source Limiters Limiter at all gain stages, range > 40dB. First stage analog, subsequent stages digital. Adjustable Threshold, Ratio, and Release. ' Audio Outputs DAC feeding Stereo Out, Headphone Out 32 bit precision; 115 dB dynamic range (A-weighted) L/R Out 3.5 mm TRS stereo unbalanced, 500 ohm output impedance, 7.8 dBu max output level Headphones Out 3.5 mm TRS stereo unbalanced, 300 mW 300 mW, for use with any impedance headphones ' USB Audio Interface (USB-C): 6-in/2-out (from computer); 44.1 kHz/48 kHz/96 kHz; 16/24/32-bit integer, 32-bit float; Class-compliant USB 2.0 high speed driver Mass Storage (USB-C): USB 2.0 high speed Keyboard (USB-A): Text entry and control Thumbdrive (USB-A): Manual or auto-copy to drive Midi Control Surface (USB-A) ' Recording Maximum Record Tracks 5 Tracks Stereo mix 3 ISO's Sampling Frequency 44.1 kHz 47.952 kHz 48 kHz 48.048 kHz 96 kHz 192 kHz Bit Depth 16 24 32 Float Recording Storage Type: SD, SDXC, SDHC Card, & USB thumbdrive (copy only) Max Storage Size: 512 GB (SDXC) Card format: exFAT File Type Polyphonic WAV Timecode Timecode Modes Free Run Time of Day (file stamped w/current ToD) Rec Run Ext LTC (file stamped w/incoming LTC on 3.5mm Aux In) Camera TC (file stamped w/incoming TC from cameras that output TC) Timecode Frame Rates Auto-detects (fps): 23.98 (same as 23.976) 24 25 29.97DF 29.97ND 30 30DF 3.5 mm Aux In Timecode Input Timecode: 20k ohm impedance, 0.3 V - 3.0 V p-p ('17 dBu - 3 dBu) 3.5 mm Stereo Out Timecode Output Timecode: 1k ohm impedance, 3.0V p-p ( 12 dBu) HDMI TC Reader via HDMI Sample/Timecode Accuracy 0.2 ppm (0.5 frames per 24 hours) Remote Control Bluetooth LE: Wireless control using Wingman app HDMI (micro): Auto-record start/stop trigger from cameras that output record flag over HDMI Timecode: Auto-record start/stop trigger via Aux In timecode Touch Screen 320x256; 1.6-inch, color, sunlight-viewable IPS LCD Power AA Batteries: 4x AA sled (included); 8x AA sled (optional accessory). NiMH recommended From computer: Bus-powered via USB-C port; optional MX-USBY cable, connects one USB-C to two USB-A ports L-Mount: Optional sled for 2x (hot-swappable) Li-ion batteries From computer: Bus-powered via USB-C port AC Adapter: MX-PSU (included) Power supply wall adapter w/ USB-C connector; 15 W; has 4 adapter plugs for US, UK, AU & Europe Environmental Operating: -20°C to 60°C, 0 to 90% relative humidity; (non-condensing) Storage: -40°C to 85°C Dimensions and Weight Dimensions: 36 mm x 144 mm x 110 mm (H x W x D); 1.40" x 5.68" x 4.35" Weight: .48 kg; 16.8 oz. (unpackaged, without batteries)
