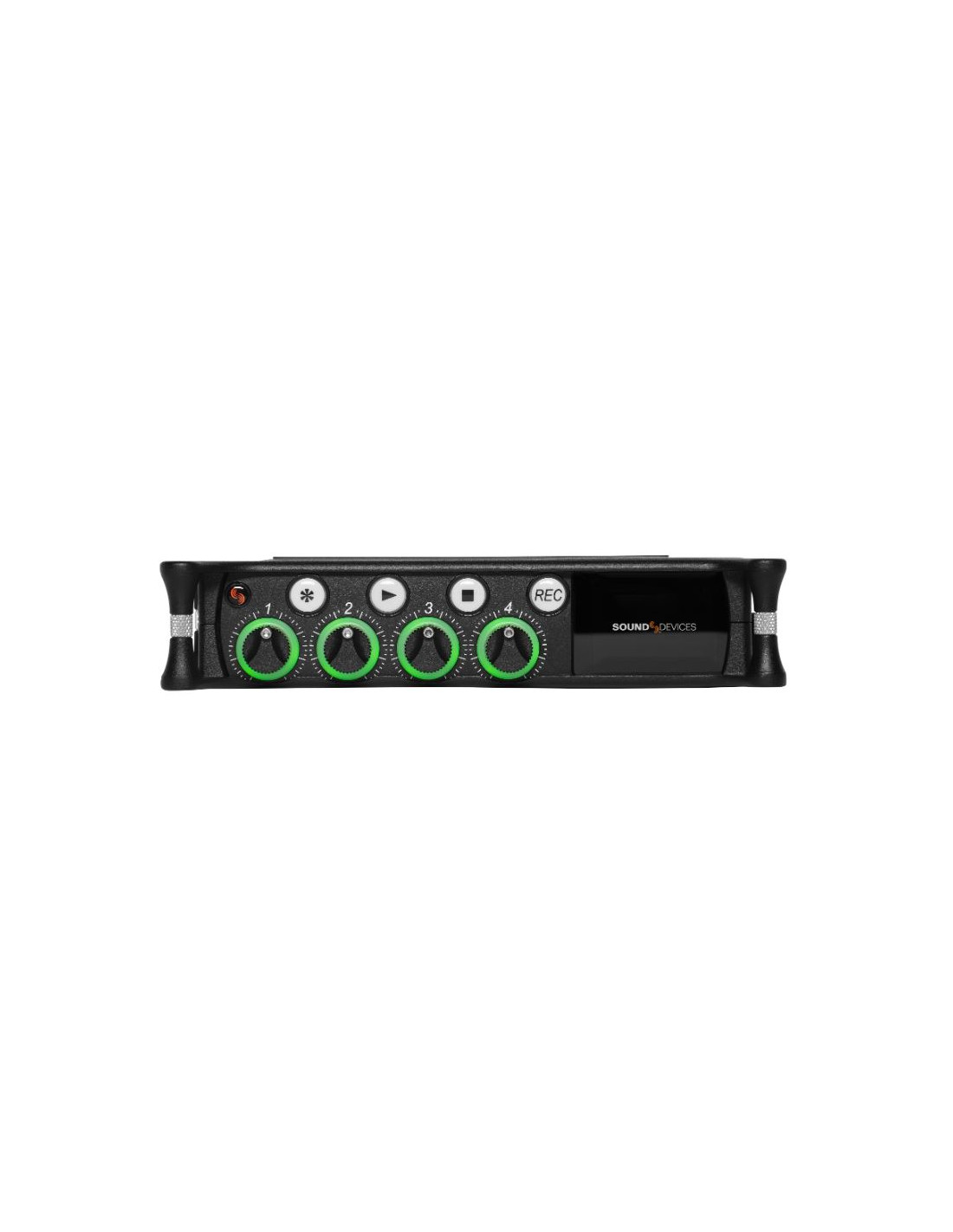

MIXETTE SOUND DEVICE MIX-PRE 6 II

Quatre préamplis micro "Kashmir" ultra-silencieux avec limiteurs réglables capturent un son de haute qualité sur le terrain, sur le plateau ou avec un ordinateur. Créez un mix à l'aide du mixeur portable 6 x 2 intégré. Enregistrez jusqu'à 8 pistes sur une carte SD et sauvegardez sur une clé USB. L'interface audio USB 8 entrées et 4 sorties est diffusée sur votre ordinateur via USB-C avec un échantilonage allant jusqu'à 32 bits. De 16 à 32 bits et des taux d'échantillonnage de 44,1 kHz à 192 kHz.Générateur de timecode LTC interne. Timecode In / Out via Aux In / Stereo Out. Timecode et enregistrement du déclenchement via HDMI. USB-A pour les surfaces de contrôle, les claviers et la copie automatique sur une clé USB. Mélange ISO, gain, panoramique, coupe-bas, inversion de phase et alimentation fantôme intégrés. Écran tactile couleur lisible au soleil et mesure LED. Léger, durable et petit: parfait pour une utilisation dans un sac, un enregistrement mobile ou un home studio. Un ampli casque puissant de 300 mW 300 mW permet une référence claire et précise de l'audio. Comprend un coupleur de batterie MX-4AA (piles non incluses), une alimentation secteur MX-PSU et un câble USB-C vers USB-C. Audio Inputs Frequency Response 10Hz to 80kHz /- 0.5dB re 1kHz @ 192kHz sample rate THD Noise 0.005% max (@1kHz, 22-22kHz BW, gain=20dB, -10dBu in) ADC 32 bit precision; 142 dB dynamic range min (A-weighted, gain=10dB, fader=0dB) Equivalent Input Noise -130dBV (-128dBu) max (A-weighting, gain=76dB, 150 ohm source impedance) Inputs Mic: XLR active-balanced; 4k input Line: XLR active-balanced; 4k input Aux/Mic in: 3.5mm TRS, 2-channel unbalanced; 100k input Line: ¼-inch TRS active-balanced; 4k input USB Audio: 4 channels 6 Total analog inputs: 4 mic-line inputs, 2 on Aux In' All inputs fully RF-filtered and overload protected. Gain Mic input: 6dB to 76dB Line input: -20dB to 30dB Fader: -inf to 20dB Headphone: -inf to 20dB Total, Mic-to-recording (max): 96dB Aux In (Mic): Gain = 10dB to 40dB Aux In (Line): Gain = -10dB to 20dB Total Aux Gain including Fader (Mic-to-recording): 60dB Maximum Input Level Mic XLR: 14dBu (limiters on or off) Line XLR: 28dBu (limiters on or off) Aux In (Mic): -10dBu Aux In (Line): 10dBu Low Cut Filters 40Hz to 160Hz (adjustable), 18 dB/oct. First stage analog, subsequent stages digital. Microphone Powering Mic XLRs: 48V via 6.8k resistors, 10mA each Mic 3.5mm: 3V @ 3k source Limiters Limiter at all gain stages, range > 40dB. First stage analog, subsequent stages digital. Adjustable Threshold, Ratio, and Release.   Audio Outputs DAC feeding Stereo Out, Headphone Out 32 bit precision; 115dB dynamic range (A-weighted) Stereo Out 3.5mm TRS stereo unbalanced, 500 ohm output, 7.8dBu max output level Headphones Out 3.5mm TRS stereo unbalanced, 300mW 300mW, for use with any impedance headphones USB Audio Interface (USB-C): 8-in/4-out; 44.1 to 96 kHz; 16/24/32-bit integer, 32-bit float; Class-compliant USB 2.0 high speed or ASIO® (supplied via download) Mass Storage (USB-C): USB 2.0 high speed Keyboard (USB-A): Text entry and control Thumbdrive (USB-A): Manual or auto-copy to drive Midi Control Surface (USB-A)   Recording Maximum Record Tracks 8 Tracks: Stereo mix 6 ISOs Sampling Frequency 44.1 kHz 47.952 kHz 48 kHz 48.048 kHz 96 kHz 192 kHz Bit Depth 16 24 32 Float Recording Storage Type: SD, SDXC, SDHC Card (USB thumbdrive, copy only) Max Storage Size: 512 GB (SDXC) Card format: exFAT File Type Polyphonic WAV   Timecode Timecode Modes Free Run Time of Day (file stamped w/current ToD) Rec Run Ext LTC (file stamped w/incoming LTC on 3.5mm Aux In) Camera TC (file stamped w/incoming TC from cameras that output TC) Timecode Frame Rates Auto-detects (fps): 23.98 (same as 23.976) 24 25 29.97DF 29.97ND 30 30DF 3.5 mm Aux In Timecode Input Timecode: 20k ohm impedance, 0.3 V - 3.0 V p-p ('17 dBu - 3 dBu) 3.5 mm Stereo Out Timecode Output Timecode: 1k ohm impedance, 3.0V p-p ( 12 dBu) HDMI TC Reader via HDMI Sample/Timecode Accuracy 0.2 ppm (0.5 frames per 24 hours)   Remote Control Bluetooth LE: Wireless control using Wingman app HDMI (micro): Auto-record start/stop trigger from cameras that output record flag over HDMI Timecode: Auto-record start/stop trigger via Aux In timecode Touch Screen 320x256; 1.6-inch, color, sunlight-viewable IPS LCD Power AA Batteries: 4x AA sled (included); 8x AA sled (optional accessory). NiMH recommended From computer: Bus-powered via USB-C port; optional MX-USBY cable, connects one USB-C to two USB-A ports AC Adapter: MX-PSU (included) Power supply wall adapter w/ USB-C connector; 15W; has 4 adapter plugs for US, UK, AU & Europe L-Mount: Optional sled for 2x (hot-swappable) Sony L-type Li-ion batteries Environmental Operating: -20°C to 60°C, 0 to 90% relative humidity; (non-condensing) Storage: -40°C to 85°C Dimensions and Weight Dimensions: 36mm x 166 mm x 118 mm (H x W x D); 1.40" x 6.53" x 4.65" Weight: .56 kg; 19.9 oz. (unpackaged, without batteries)
