APlusLift 14,000LB 4-Post Heavy Duty Lift AL-14C

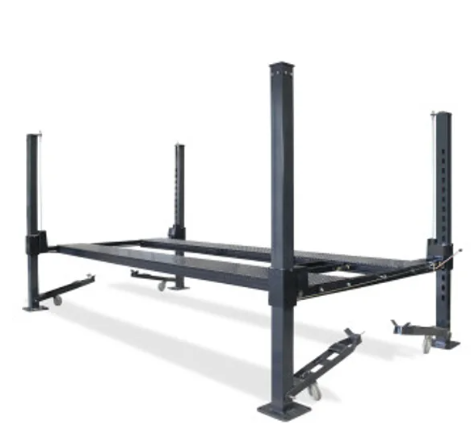

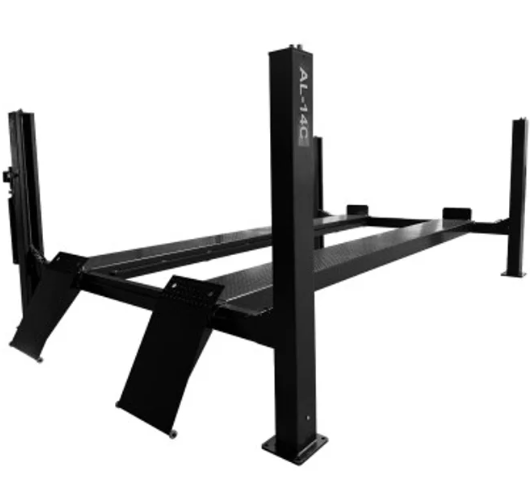

The APlusLift AL-14C (also known as HW-14AL) is a robust 4-post lift meticulously designed and built to commercial-grade standards, promising many years of reliable service in demanding automotive environments. With an impressive 14,000 LB (approximately 6,350 kg) lifting capacity, this lift is perfectly suited for a wide range of heavy-duty vehicles, including trucks, large SUVs, and commercial vans, while also providing excellent capabilities for standard cars. Constructed with superior quality materials and exceptional workmanship, the AL-14C features a durable powder-coated finish, ensuring superior resistance against corrosion and extending its lifespan. This time-tested car lift model, with a design refined over 30 years, guarantees reliability and safety. It boasts generous dimensions for comfortable operation: an overall length of 243 1/2 inches, an overall width of 134 3/8 inches, and an overall height of 83 inches. The lift provides a substantial lifting height of 77 11/32 inches, offering ample clearance for under-vehicle access, and a drive-through width of 106 9/32 inches for easy vehicle positioning. The AL-14C package includes two free approach ramps, facilitating smooth and easy vehicle loading. It also features heavy-duty 15/32″ diameter cables, engineered to reduce stress during the synchronization process and significantly increase cable life. Powering the lift is a reliable 220V Single Phase 3HP 10A motor (with a recommended 30A breaker), providing a lifting time of approximately 100 seconds. For optimal stability, a minimum concrete thickness of 4″ at 3000psi is required for installation. This lift is versatile, suitable for parking, storage, and a variety of service tasks, making it an invaluable asset for any busy commercial shop or large private garage. 14,000 LB Lifting Capacity: Commercial-grade capacity for heavy-duty vehicles, trucks, and SUVs. Industry-Leading 3-Year Warranty: Extended coverage for peace of mind. Time-Tested Design: Proven car lift model refined over 30 years for reliability. Powder Coated Finish: Provides superior corrosion resistance for extended durability. Free Approach Ramps Included: Facilitates easy and smooth vehicle loading. Heavy-Duty Cables: 15/32″ diameter cables reduce stress and increase lifespan. Versatile Use: Ideal for parking, vehicle storage, and general service/maintenance. High Lifting Height: 77 11/32″ offers ample under-vehicle access. 10 Lock Positions: Provides flexible working heights for various tasks. Efficient Motor: 220V Single Phase 3HP 10A motor for reliable performance. Designed to Commercial Standards: Built for rigorous use in professional settings. Model AL-14C (HW-14AL) Warranty 3 Years (36 Months) Lifting Capacity 14,000 LB (6,350 kg) Overall Length 243 1/2″ (618.5 cm) Overall Width 134 3/8″ (341.3 cm) Drive Through Width 106 9/32″ (270.0 cm) Overall Height 83″ (210.8 cm) Lifting Height 77 11/32″ (196.4 cm) Clearance Under Runway 70 27/32″ (180.0 cm) Runway Size 203 15/16″L x 20″W (518.0 cm L x 50.8 cm W) Width Between Runways 43″ Inside-Inside, 83″ Outside-Outside (109.2 cm Inside-Inside, 210.8 cm Outside-Outside) Runway Gauge Steel 15/64″ (approx. 5.95 mm) Column Cross Section 7 11/16″L x 6″W (19.5 cm L x 15.2 cm W) Removable Approach Ramps Size 27 31/32″L x 20 3/32″W (71.0 cm L x 51.0 cm W) Lock Positions 10 Positions: 20 15/32″, 25 19/32″, 31 1/2″, 37 13/32″, 43 5/16″, 49 7/32″, 55 1/8″, 61 1/32″, 66 15/16″, 72 27/32″ Lifting Time 100 seconds Motor 220V Single Phase 3HP 10A (recommend a 30A breaker) Hydraulic Oil 4.3-5 gallons AW32/AW46 (Not Included) Concrete Thickness Requirement 4″ 3000psi Shipping Weight 3,000 LB (1,360 kg) Shipping Package Size 214″L x 25″W x 31″H (543.6 cm L x 63.5 cm W x 78.7 cm H) Usage Parking/Storage/Service Finish Powder Coated Finish with Superior Corrosion Resistance Cables Heavy duty 15/32″ diameter cables Parts Included 2 Removable Approach Ramps
