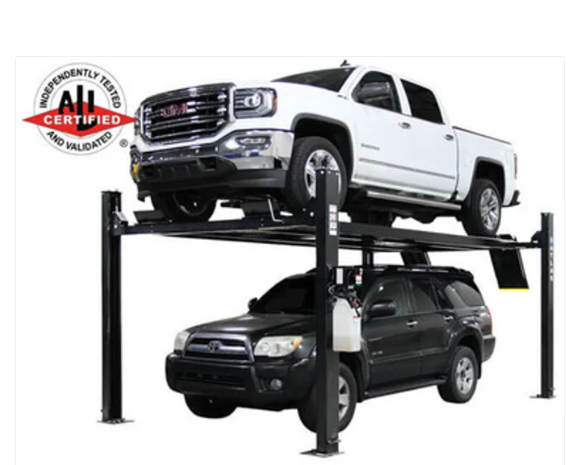

Apex 9 ALI Certified Hobbyist 9,000 Lb. Capacity 4-Post Parking Car Lift

All Atlas portable four-post lifts, including the Atlas Apex 9, are designed and manufactured for use by homeowners or in restoration garages. These lifts are not designed for the frequent, heavy-duty operation typical of commercial repair garages. The Atlas Apex 9 boasts a 9,000 lb (approximately 4,082 kg) capacity and is ALI Certified, ensuring it meets industry safety standards. It features a durable Atlas powder coat finish, a single-point release system for ease of use, and a ladder lock design with a dual locking safety system for secure operation. While optional anchor bolts are available (sold separately), the lift includes four wheel stops and two rubber wheel chocks for added stability. A caster kit with polyurethane wheels is included for easy maneuverability, along with drip trays and jack trays for convenient maintenance. ALI Certified – Meets industry safety standards 9,000 lb (4,082 kg) Capacity – Suitable for a wide range of vehicles Atlas Powder Coat Finish – Provides durability and corrosion resistance Single Point Release – Simplifies the lowering process Ladder Lock Design – Ensures secure locking at multiple heights Dual Locking Safety System – Enhances safety during operation Optional Anchor Bolts – Provides added stability (sold separately) Four Wheel Stops – Prevents vehicles from rolling off the lift Two Rubber Wheel Chocks – Further secures vehicles on the lift Caster Kit with Polyurethane Wheels – Allows for easy movement of the lift Drip Trays – Protects the garage floor from fluid leaks Jack Trays – Provides a stable base for using a jack with the lift Suitable for Storing or Working on Vehicles – Versatile for various garage tasks Capacity 9,000 lb (4,082 kg) Lifting Height to Top of Runway (on locks) 80 7/8″ (2.05 m) Clearance Under Runways 75 1/2″ (1.92 m) Column Height (including nuts) 103 1/4″ (2.62 m) Overall Width (without motor or casters) 121 7/8″ (3.10 m) Overall Width (with motor) 133 7/8″ (3.40 m) Overall Length without Approach Ramps or Release Bar 204 1/8″ (5.19 m) Overall Length with Approach Ramps (including lock bar) 243″ (6.17 m) Approach Ramps 31 1/2″ (0.80 m) Runway Width 20 1/8″ (0.51 m) Runway Rail Width 2 1/8″ (0.054 m) Runway Length 188 1/2″ (4.79 m) Runway Thickness 4 7/8″ (0.12 m) Width Between Runways 38 7/8″ (0.99 m) Width Between Runway Rails 34 3/4″ (0.88 m) Outside of Runway to Outside of Runway 79 1/8″ (2.01 m) Column Size 7 5/8″ x 4 5/8″ (0.19 m x 0.12 m) Clearance Between Columns 108 1/8″ (2.75 m) Length Between Columns 184 1/4″ (4.68 m) Column Base 11 5/8″ x 11 5/8″ (0.30 m x 0.30 m) Maximum Wheelbase 194″ (4.93 m) Drive Thru (outside of tire to outside of tire) 97″ (2.46 m) Cable Diameter 7/16″ (0.011 m) Steel Gauge Gauge 6 (0.1875″ / 4.75 mm) Motor/Electrical Requirement 110 volts, single phase (1); A 30 amp breaker is recommended. Oil Requirement 2.6 gallons AW32/AW46 Shipping Weight 2,975 lb (1,349 kg)
